Overview
The electricity metering box is an outdoor integrated device designed specifically for energy measurement, data monitoring, and safety protection. It features accurate metering, anti-tampering, overcurrent protection, and other functions. Compact in structure and easy to install, it is widely used in residential, commercial, and industrial power consumption sites to provide reliable energy measurement and centralized management.
Features
Equipped with accurate metering, data storage, and remote transmission capabilities
Anti-tampering design for enhanced safety and reliability
Overload and short-circuit protection for stable operation
Good protection performance, suitable for outdoor environments
Modular structure for easy installation and maintenance
Product Parameters
1 Rated Operating Voltage V AC230/400
2 Rated Current A ≤400
3 Metering Accuracy Class — Class 1.0 / Class 0.5S
4 Protection Level — IP54
5 Operating Frequency Hz 50
6 Communication Interface — Infrared / RS-485 / Wireless
7 Ambient Temperature Range ℃ -25 to +55

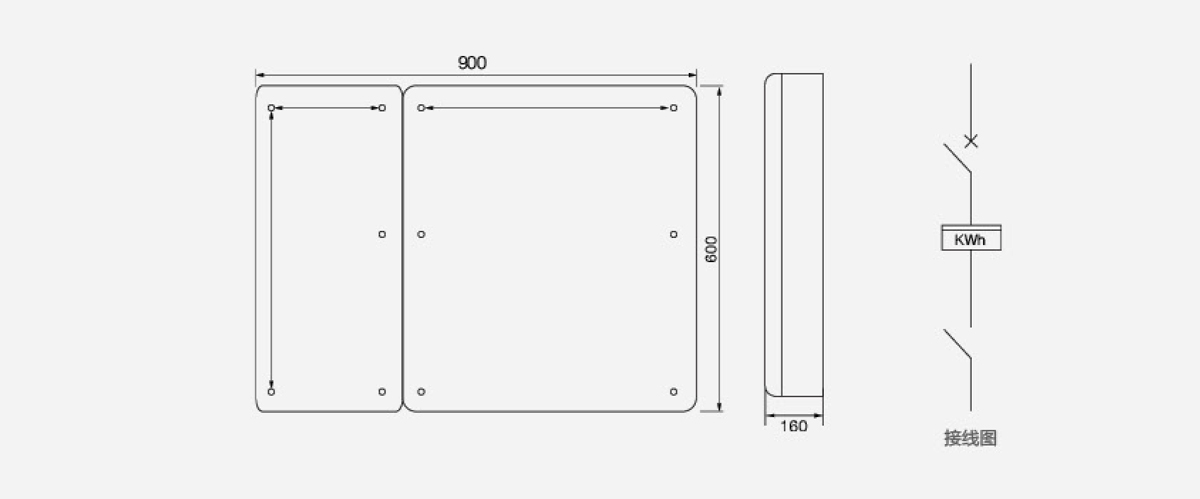

| Type | Configuration | Name | Specifications | Number |
| BSPX-A4 | Pre table configuration | Molded Case Circuit Breaker | NM1-250S/3300 250A | 1 |
| Pre table configuration | Mutual inductor | 200/5 | 3 | |
| Post table configuration | Joint junction box | FJ6/DFY1 | 1 | |
| Post table configuration | Molded Case Circuit Breaker | NM1-250S/3300 250A | 1 |
